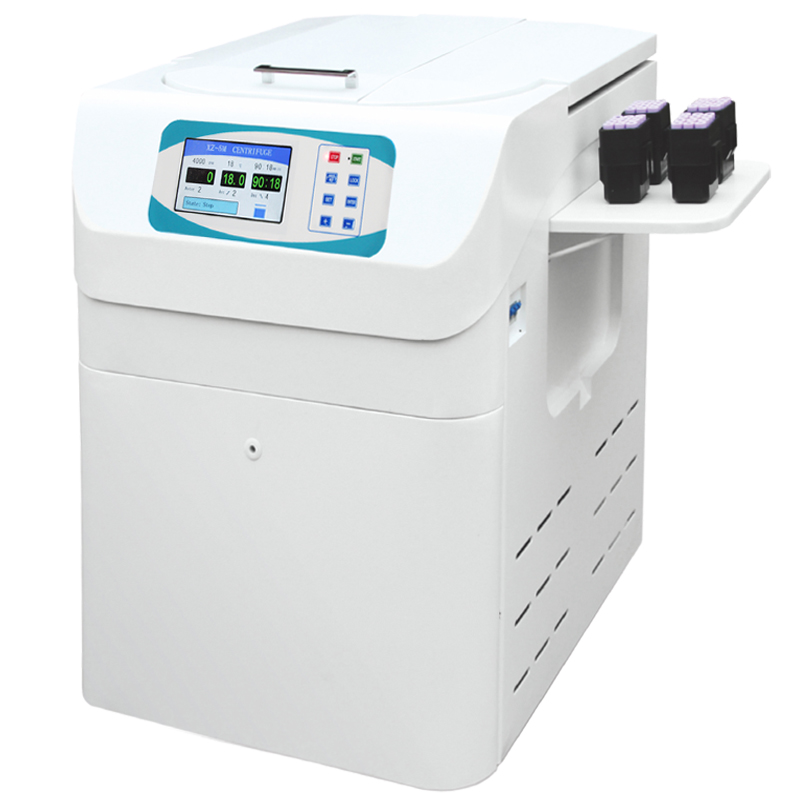

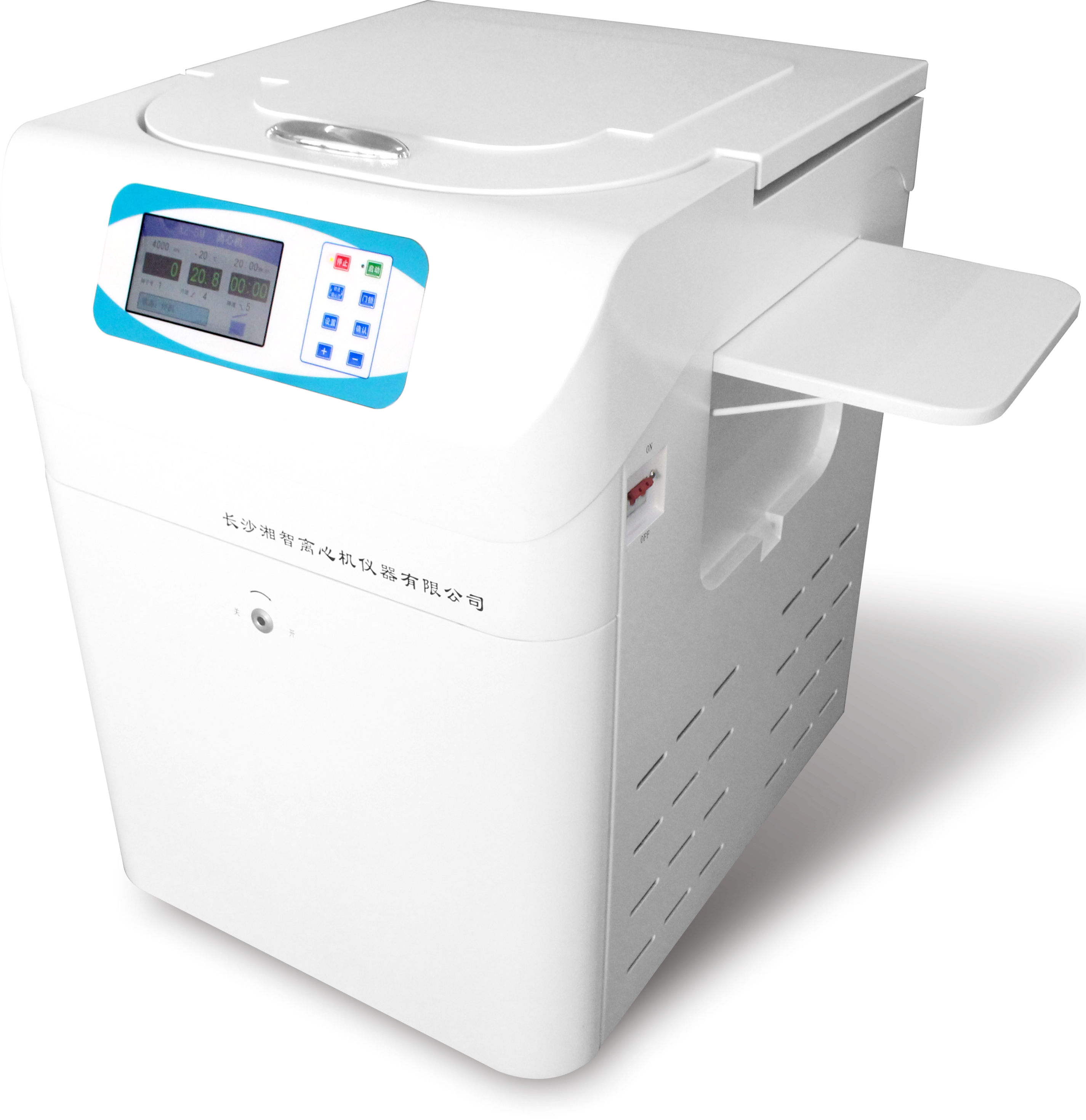

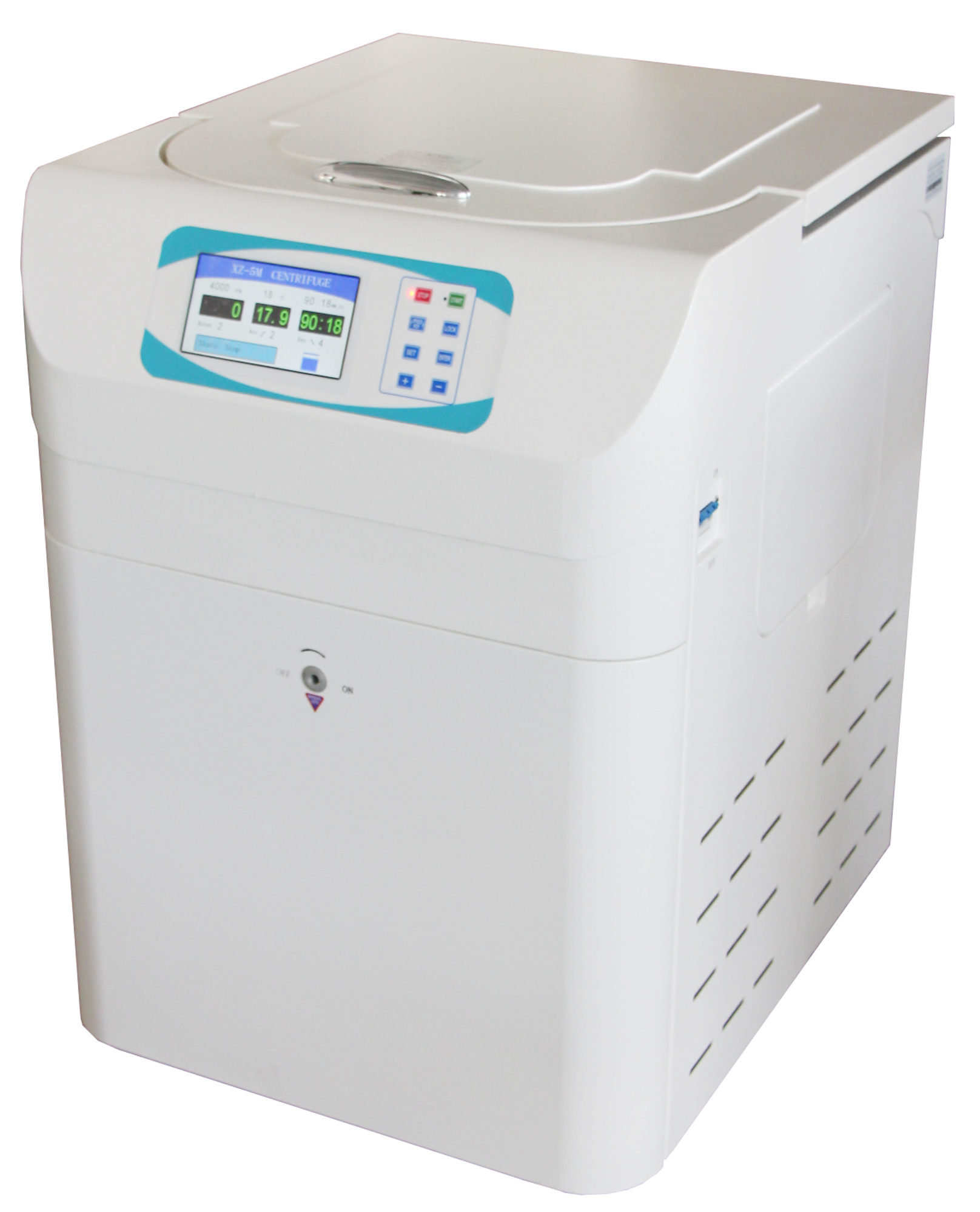

Model: XZ-5 XZ-5M
The centrifuge can process a volume of up to 3 liters, offering a complete solution in separation of samples to be centrifuged for blood bank centre, research labs, clinic, bio-technology, industry and hospitals.
The large selection of rotors and adapters. Ac converter motor maintenance free, a software allows the operator to control the configuration parameters easily, the control panel provides the user with an easy to handle machine and an ally in the daily tasks.
| Model | XZ-5M/XZ-5 |
|---|
Low Speed Centrifuge
Features:
◆Induction motor maintenance free
◆Controlled by microprocessor
◆Minimum acceleration time
◆Shown on the control head: rotor code, max. rpm, max. rcf,
avoiding exceeding the maximum speed.
◆Lid open programmable, motorized
◆Rpm/rcf adjustable along with the run
◆Centrifugation chamber in stainless steel, guarding ring
around chamber.
◆Lid dropping protection
◆Imbalance cut off
◆Manual emergency lid release (very useful in unexpected power interruption)
◆The centrifuge can’t run with the lid open, neither open the lid when rotor runs
◆Temperature probe inside the chamber of centrifugation, cooling gas R134a(libre cfc)
Technical data
| Model | XZ-5 | XZ-5M |
| Screen | LCD screen metal frame | LCD screen metal frame |
| Max. speed | 5000rpm | 5000rpm |
| Max. rcf | 4745xg | 4745xg |
| Max. capacity | 6x500ml | 6x500ml |
| Temp range
（at RT 25℃） |
— | -15℃~+40℃ |
| Speed accuracy | ±20rpm | ±20rpm |
| Temp accuracy | — | ±1℃ |
| Timer range | 1 min~99min59s | 1 min~99min59s |
| Acceleration rates | 1-10 | 1-10 |
| Deceleration rates | 1-10 | 1-10 |
| Motor | Converter motor | Converter motor |
| Compressor | — | imported compressor |
| Noise | ≦58db | ≦58db |
| Power supply | AC220V 50HZ 20A | AC220V 50HZ 20A |
| Net weight | 150kg | 160kg |
| Gross weight | 205kg | 215kg |
| Dimension | 630×750×900mm(L×W×H) | 630×750×900mm(L×W×H) |
| Package size | 750×850×1100mm(L×W×H) | 750×860×1100mm(L×W×H) |

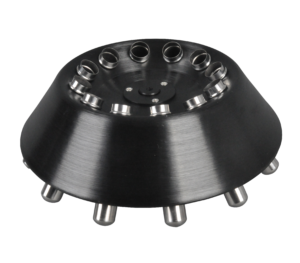

 No.1 Angle Rotor |
Max speed : 5000r/min
Capacity : 12 x 15ml/10ml Max rcf : 3528xg ØxL: 18x102mm |
 No.2 Swing Rotor |
Max speed : 5000r/min
Capacity : 4 x 100ml Max rcf : 4745xg ØxL: 42.5x100mm |
 No.3 Swing Rotor |
Max speed : 4000r/min
Capacity : 4 x 250ml Max rcf : 2990xg ØxL: 63.5x90mm |
 No.4 Swing Rotor |
Max speed : 4000r/min
Capacity : 4 x 500ml Max rcf : 3520xg ØxL: 81x105mm |
 No.5 Swing Rotor |
Max speed : 4000r/min
Capacity : 6 x 500ml Max rcf : 3710xg ØxL: 81x105mm |
 No.6 Swing Rotor |
Max speed : 4000r/min
Capacity : 8 x 50ml Max rcf : 3040xg ØxL: 30.5x92mm |
 No.7 Swing Rotor |
Max speed : 4000r/min
Capacity : 32x15ml/10ml /5ml/2ml Max rcf : 3000xg/2930xg /2810xg/2810xg ØxL: 18 x92mm |
 No.8 Swing Rotor |
Max speed : 4000r/min
Capacity :48 x 5ml/2ml Max rcf : 2980xg/2625xg |
 No.9 Swing Rotor |
Max speed : 4000r/min
Capacity :80x5ml/2ml Max rcf : 3620xg/3260xg |
 No.10 Swing Rotor |
Max speed : 4000r/min
Capacity :96 x 5ml/2ml Max rcf : 3620xg/3405xg |
 No.11 Swing Rotor |
Max speed : 4000r/min
Capacity :120x 5ml/2ml Max rcf : 3580xg/3220xg |
 No.12 Swing Rotor |
Max speed : 4000r/min
Capacity : 2 x 2 x96holes Max rcf : 2390xg ØxL: 137x87x42 |
 No.13 Swing Rotor |
Max speed : 4000r/min
Capacity :72 x 5ml/2ml Max rcf : 2950xg/2625xg |
