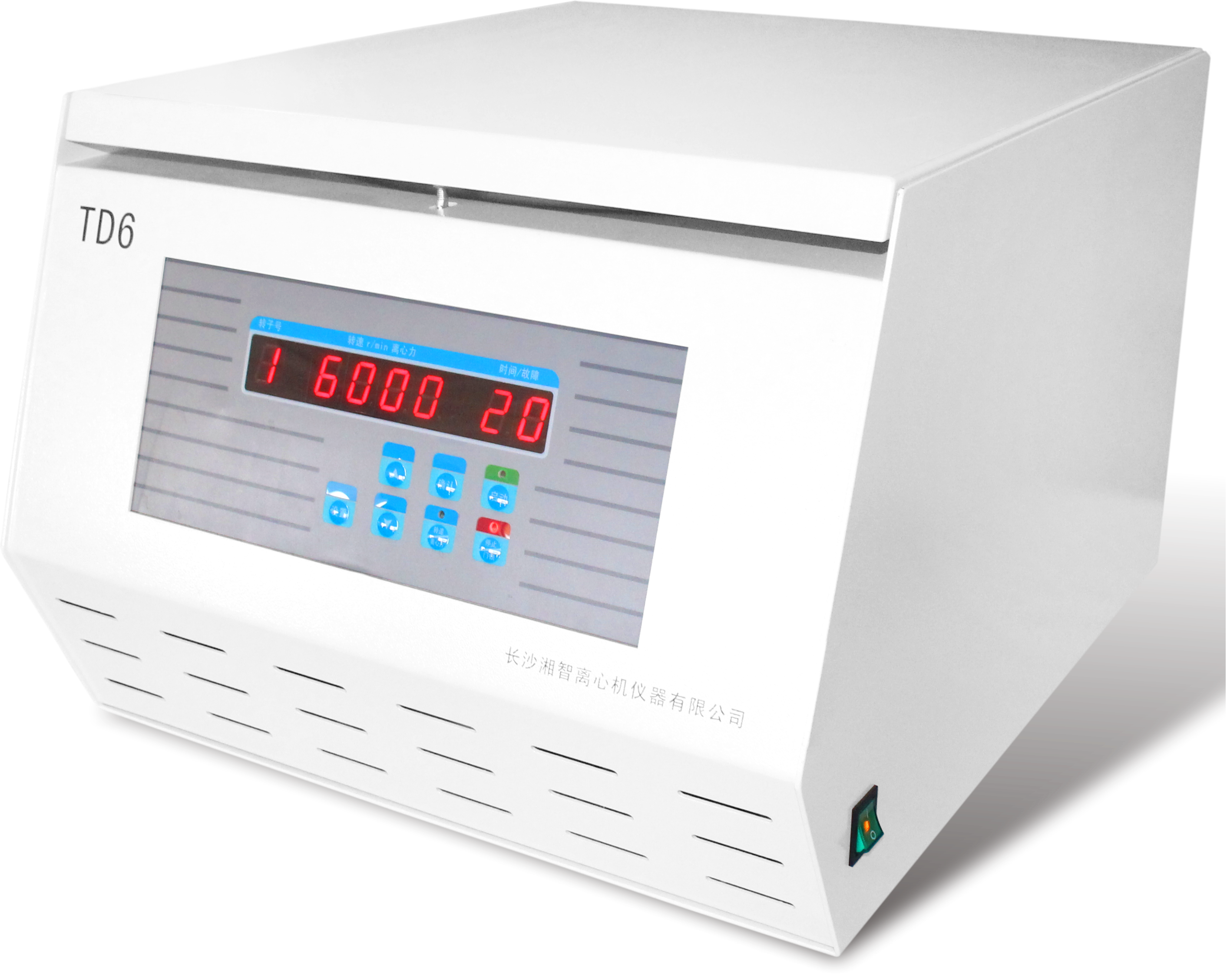

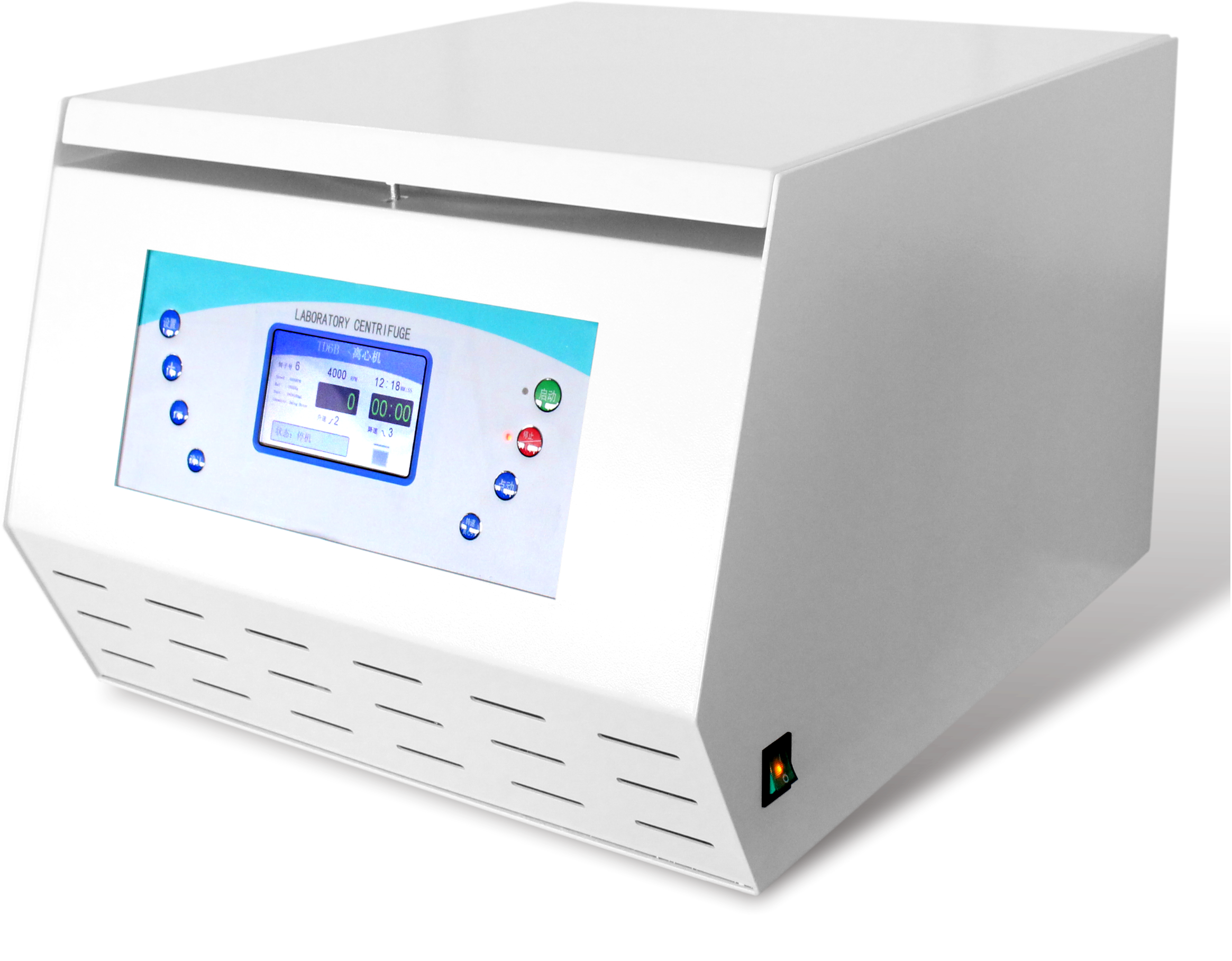

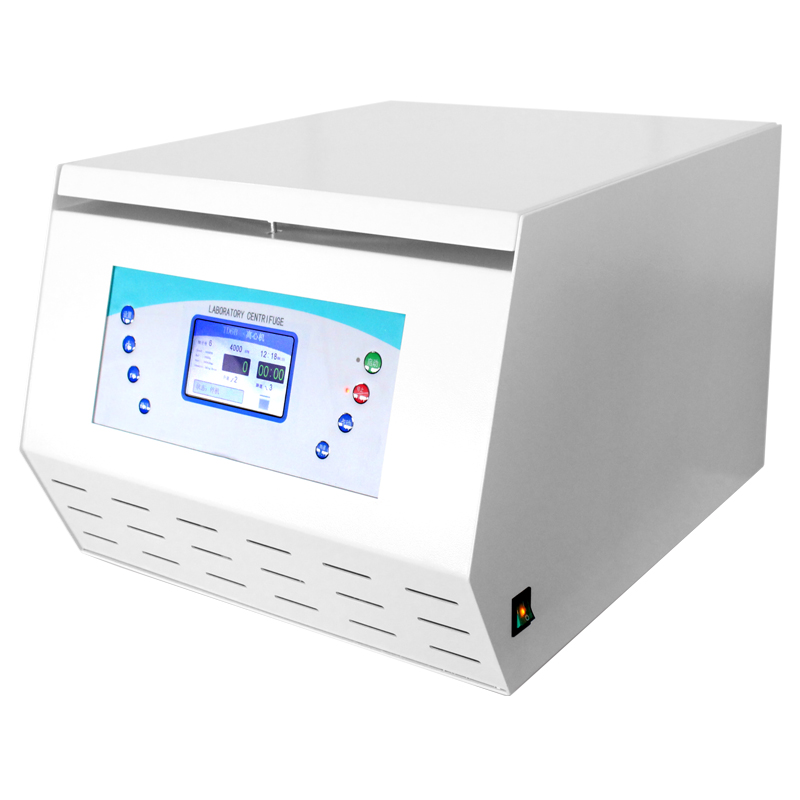

Model : TD6B / TD6
The new generation of microprocessor-based tabletop centrifuges models uses a brushless induction motor with frequency drive enabling the user to pre-set speed & time with a high degree of accuracy. The display of set parameters like speed, time, etc. makes the unit an ideal choice for repetitive sample analysis.
| Model | TD6, TD6B |
|---|
Benchtop Low Speed High Capacity centrifuge
Features:
◆Metal external case.
◆Rubber suspensions reduce vibrations.
◆Gas spring to prevent falling of door.
◆Emergency lid lock release.
◆Safety lid interlock to prevent cover opening during centrifugation.
◆Extremely quiet operation.
◆Choice of the high brake, low brake(for TD6B).
◆Imbalance high detector with cutoff.
◆Stable speed output even under unstable voltage conditions.
◆Countdown timer.
◆Recall of last set parameters. (Useful for repetitive analysis).
◆Self-diagnosis for errors.
◆Shortspin function(for TD6B).
Technical data
| Model | TD6B | TD6 |
| Screen | LCD color Screen | LED Digital Screen |
| Machine Body | Metal frame | Metal frame |
| Max. Speed | 6000 rpm | 6000 rpm |
| Max. RCF | 5080xg | 5080xg |
| Max Capacity | 4x500ml | 4x500ml |
| Speed accuracy | ±20 rpm | ±20 rpm |
| Timer range | 1~99min | 1~99min |
| Acceleration Rates | 1~10 | — |
| Deceleration Rates | 1~10 | — |
| Motor | Converter motor | Converter motor |
| Noise | <55db | <55db |
| Power supply | AC220V 50/60Hz 10A | AC220V 50/60Hz 10A |
| N.W. | 56kg | 56kg |
| G.W. | 64kg | 64kg |
| Dimension | 600×490×400mm(L×W×H) | 600×490×400mm(L×W×H) |
| Packing Size | 700×600×500mm(L×W×H) | 700×600×500mm(L×W×H) |
Rotor List

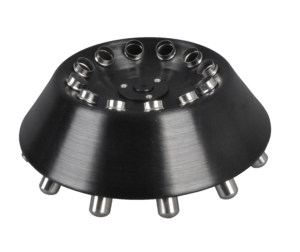

 No.1 Angle Rotor |
Max speed : 6000r/min
Capacity : 12 x 15ml Max rcf : 5080xg ØxL: 18x102mm |

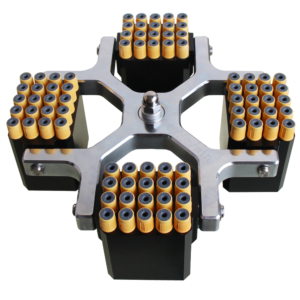

 No.2 Swing Rotor |
Max speed : 4000r/min
Capacity : 96 x 5ml/2ml Max rcf : 3620xg/3405xg |

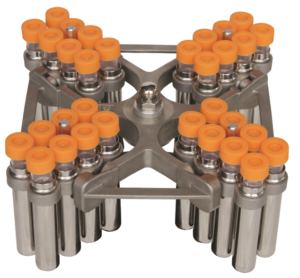

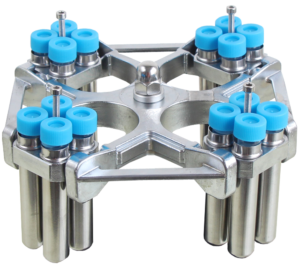

 No.3 Swing Rotor |
Max speed : 4000r/min
Capacity : 32 x 15ml/10ml /5ml/2ml Max rcf : 3000xg/2930xg /2810xg/2810xg ØxL: 18x92mm |

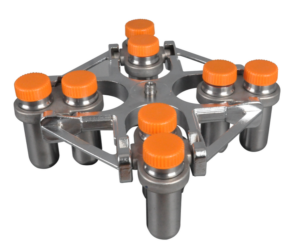

 No.4 Swing Rotor |
Max speed : 4000r/min
Capacity : 8 x 50ml Max rcf : 3040xg ØxL: 30.5x92mm |

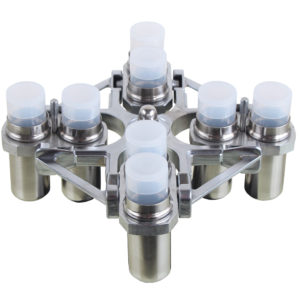

 No.5 Swing Rotor |
Max speed : 4000r/min
Capacity : 4 x 2 x 100ml Max rcf : 2950xg ØxL: 42.5x100mm |

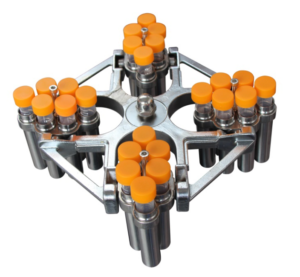

 No.6 Swing Rotor |
Max speed : 4000r/min
Capacity : 4 x 4 x 15ml/ Max rcf : 3100xg ØxL: 18x92mm |

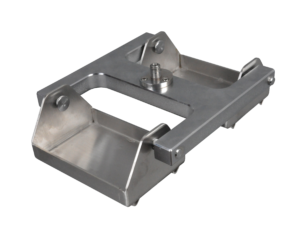

 No.7 Swing Rotor |
Max speed : 4000r/min
Capacity : 2 x 2 x 96holes Max rcf : 2390xg ØxL: 137x87x42mm |
 No.8 Swing Rotor |
Max speed : 4000r/min
Capacity : 4x250ml Max rcf : 2990xg ØxL: 63.5x90mm |

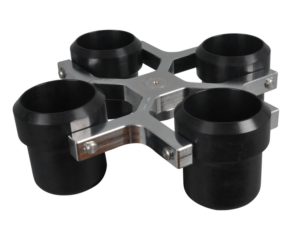

 No.9 Swing Rotor |
Max speed : 4000r/min
Capacity : 4 x 500ml Max rcf : 3520xg ØxL: 81x105mm |
 No.10 Swing Rotor |
Max speed : 4000r/min
Capacity : 24 x 15ml Max rcf : 3000xg ØxL: 18x92mm |
 No.11 Swing Rotor |
Max speed : 4000r/min
Capacity : 16 x 50ml Max rcf : 3520xg ØxL: 30.5×86.5mm |
 No.12 Swing Rotor |
Max speed : 4000r/min
Capacity : 80 x 5ml/2ml Max rcf : 3620xg/3260xg |
 No.13 Angle Rotor |
Max speed : 4000r/min
Capacity : 24 x 10ml Max rcf : 3670xg ØxL: 16x92mm |
