Features
| Automatic Siphon |
| Composite Silver Electrode |
| Value in 5 Seconds |
| Anti-maltose |
| Anti-galactose |
| Secondary Calibration |
| Self-inspection |
| Wider HCT |
Specifications
| Sample volume | 1microliter | |
| Sample type | Fresh capillary blood, venous blood | |
| Sample method | Automatic Siphon | |
| Results value | Plasma equivalent values | |
| Assay method | Electrochemical | |

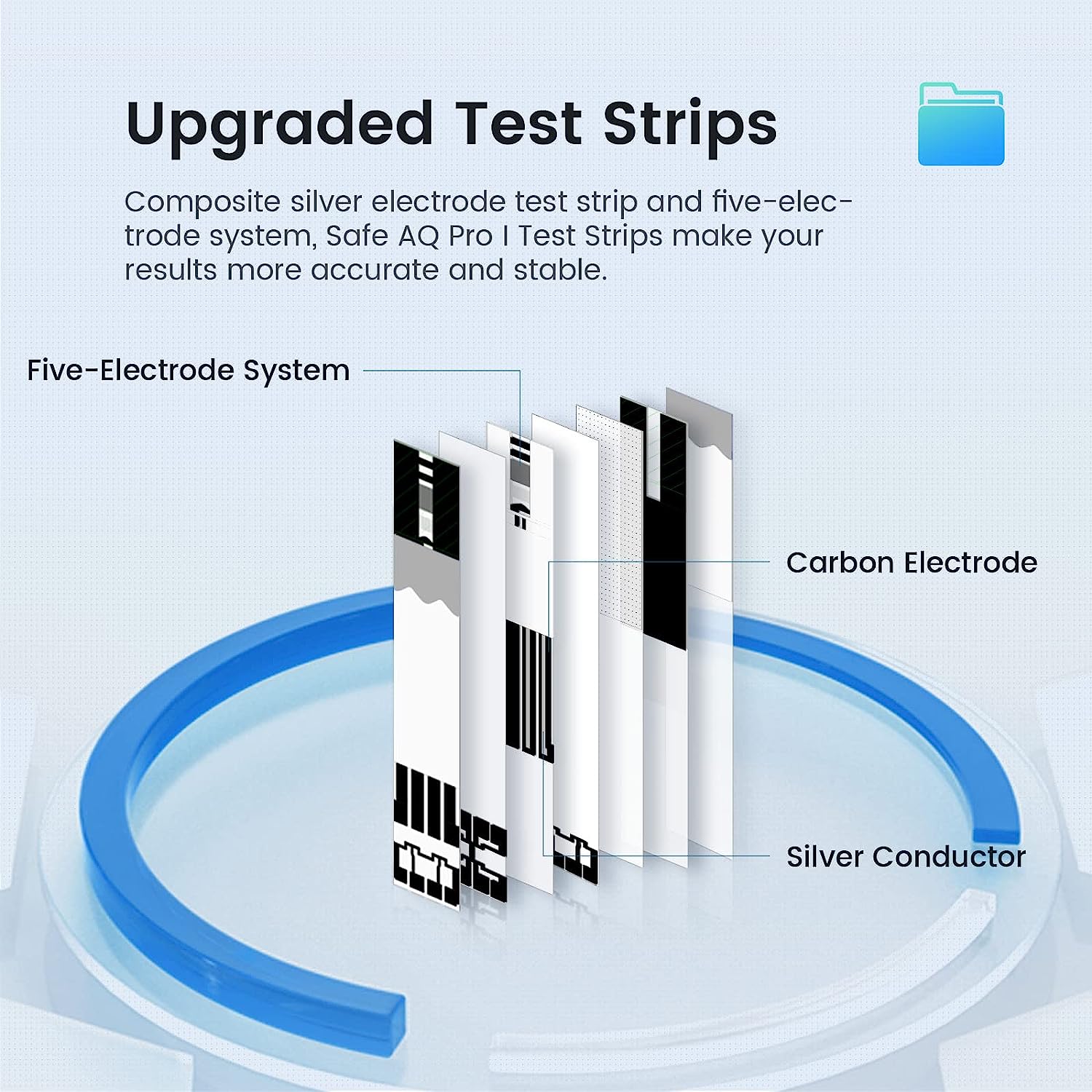

| Electrode category | Composite Silver Electrode | |
| Meter storage and transport conditions | -20℃~55℃
≤95%RH |
|
| Dimension | 85mm(L)*53mm(W)*23.6mm(H) | |
| Weight | 53.8g without battery | |
| Power source | 2 AAA alkaline batteries (3V DC, 20mA) | |
| Battery life | Approximately 1,000 tests | |
| POLLUTION DEGREE of the intended environment | 2 | |
| Display | LCD | |
| Memory | Blood glucose test results | Control solution test results |
| 500 | 70 | |

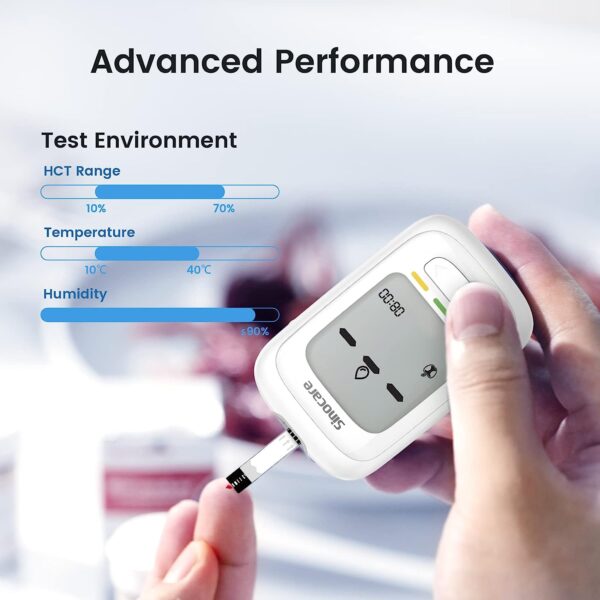

| Test Condition | Temperature: 10℃~40℃
Relative Humidity: ≤90%RH(non-condensing) |
|
| Construction | Hand-held | |
| Test strip chemical composition | FAD glucose dehydrogenase, potassium ferricyanide, non-reactive ingredients | |
| Control solution chemical composition | Water, glucose, preservative, dyes, phosphate buffer, viscosity enhancing agents | |
| Test strip storate condition | 5℃~30℃
≤95%RH |
|
| Control solution storage condition | 1℃~30℃ | |
| Measurement units | mg/dL or mmol/L | |
| Measurement range | 20~600 mg/dL, 1.1~33.3 mmol/L | |
| The lifespan of the blood glucose meter | 10 years. | |
