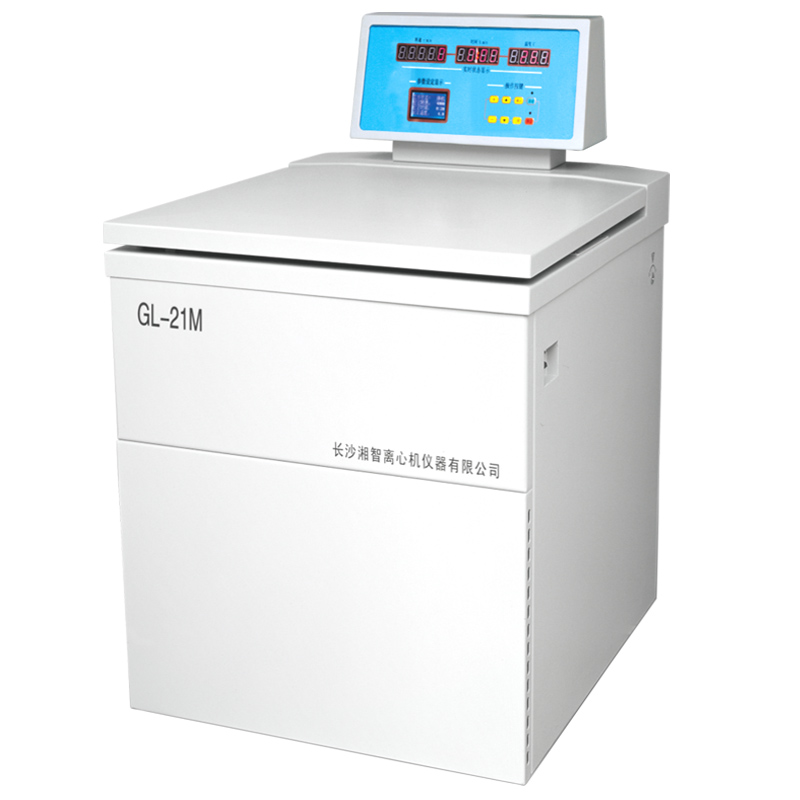

Model: GL-21M
The model can process a volume of up to 3 liters, offering a complete solution in the preparation of samples for research labs, clinics, bio-technologic, industrial, and hospitals.
| Model | GL21M |
|---|
High Speed Refrigerated Centrifuge
Features:
◆With silent-block and shock absorbers that guarantees smooth and quiet operations without vibrations.
◆With a user-friendly control unit integrated with the front panel, the screen in the centrifuge lid for external speed control.
◆Microprocessor digital control of all functions: speed, time, temperature, acceleration/deceleration, RCF, 30 program memory, operation fault display.
◆Motorized lid locks. The lid can be opened by an electronic lock or via manual operation. In case of failure resulted from the broken electronic lock.
◆Easy open the centrifuge lid via pneumatic springs.
◆RPM/RCF adjustable along with the run and value calculating automatically.
◆Selective acceleration and deceleration rates ensure high-quality separations.
◆The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
◆Swing-out rotor head, buckets, and adapters made of high-density material.
◆The centrifuge stands on movable castors.
◆ISO9001:2008, ISO13485, CE international standards are met.
Technical data
| Model | GL-21M |
| Screen | LED & LCD color screen |
| Max. Speed | 21000rpm |
| Max. RCF | 47400xg |
| Max.Capacity | 6x500ml |
| Temp.range(at RT 25℃) | -20℃~40℃ |
| Temp accuracy | ±1℃ |
| Speed accuracy | ±20rpm |
| Timer range | 1~99h59min |
| Acceleration Rates | 1~10 |
| Deceleration Rates | 1~10 |
| Motor | Converter Motor, direct drive |
| Control | Microprocessor Control |
| Power supply | AC220v 50hz 30A |
| Net weight | 220kg |
| Gross weight | 310kg |
| Dimension | 860×730×1200mm(L×W×H) |
| Packing Size | 1000×850×1400mm(L×W×H) |

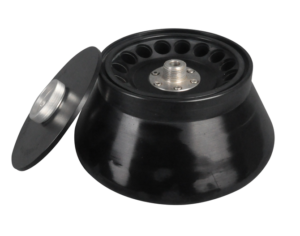

 No.1 Angle Rotor |
Max speed : 21000r/min
Capacity : 16 x 10ml Max rcf : 47400xg ØxL:16.5x78mm |
 No.2 Angle Rotor |
Max speed : 20000r/min
Capacity : 6 x 50ml Max rcf : 43000xg ØxL: 29.5x96mm |
 No.3 Angle Rotor |
Max speed : 18000r/min
Capacity : 8 x 50ml Max rcf : 39190xg ØxL: 29.5x96mm |
No.4 Angle Rotor |
Max speed : 15000r/min
Capacity : 6 x 70ml Max rcf : 25700xg ØxL:38x112mm |
 No.5 Angle Rotor |
Max speed : 12000r/min
Capacity : 8 x 100ml Max rcf : 19830xg ØxL: 38x112mm |
 No.6 Angle Rotor |
Max speed : 14000r/min
Capacity : 4 x 250ml Max rcf : 28150xg ØxL: 63x116mm |
 No.7 Angle Rotor |
Max speed : 12000r/min
Capacity : 6 x 300ml Max rcf : 22600xg ØxL:63x116mm |
 No.8 Angle Rotor |
Max speed : 10000r/min
Capacity : 6 x 500ml Max rcf : 18705xg ØxL:70.5x145mm |
 No.9 Angle Rotor |
Max speed : 12000r/min
Capacity : 6 x 250ml Max rcf : 22800xg ØxL:63x116mm |

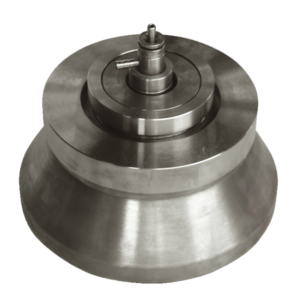

 No.10 Continuous Rotor |
Max speed : 14000r/min
Capacity : 1000ml Max rcf : 21500xg Material:Lc |
 No.11 Continuous Rotor |
Max speed : 16000r/min
Capacity : 1000ml Max rcf : 28200xg Material:Ti |
 No.12 Continuous Rotor |
Max speed : 8000r/min
Capacity : 3000ml Max rcf : 9530xg Material:Lc |
 No.13 Continuous Rotor |
Max speed : 10000r/min
Capacity : 3000ml Max rcf : 14800xg Material:Ti |
 No.14 Angle Rotor |
Max speed : 13000r/min
Capacity : 4x30ml Max rcf : 23800xg ØxL: 29.5x94mm |
|
No.15 Angle Rotor |
Max speed : 12000r/min
Capacity : 4x4x5ml Max rcf : 11900xg ØxL: 14x51mm |
 No.16 Angle Rotor |
Max speed : 10000r/min
Capacity : 4x50ml Max rcf : 16200xg ØxL:30.5×86.5mm |
 No.17 Swing Rotor |
Max speed : 4000r/min
Capacity : 4x500ml Max rcf : 3520xg ØxL: 81x105mm |

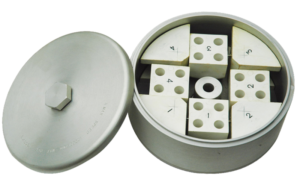

 No.18 Swing Rotor |
Max speed : 4000r/min
Capacity : 2x2x96holes Max rcf : 2390xg ØxL:137x87x42mm |
