Blood glucose and lipid Monitoring System

分类 healthcare product

A convenient, accurate multi-functional monitoring system for total cholesterol, HDL, LDL, TG, and blood glucose levels

Additional information

Product Details:

INTRODUCTION

The importance of understanding lipid and glucose levels is paramount in reducing healthcare costs and deaths from preventable conditions^1-3

Lipid monitoring is important because uncontrolled dyslipidemia can lead to the development of coronary heart disease.⁴

The National Cholesterol Education Program Adult Treatment Panel III (NCEP ATP III)
Total Cholesterol (mg/dL)
<200 Desirable
200-239 Borderline high
≥240 High

LDL Cholesterol (mg/dL)
<100 Optimal
100-129 Near optimal
130-159 Borderline high
160-189 High
≥190 Very high

HDL Cholesterol (mg/dL)
<40 Low
>60 High

Triglycerides (mg/dL)
<150 Desirable
150-199 Borderline high
200-499 High
≥500 Very high

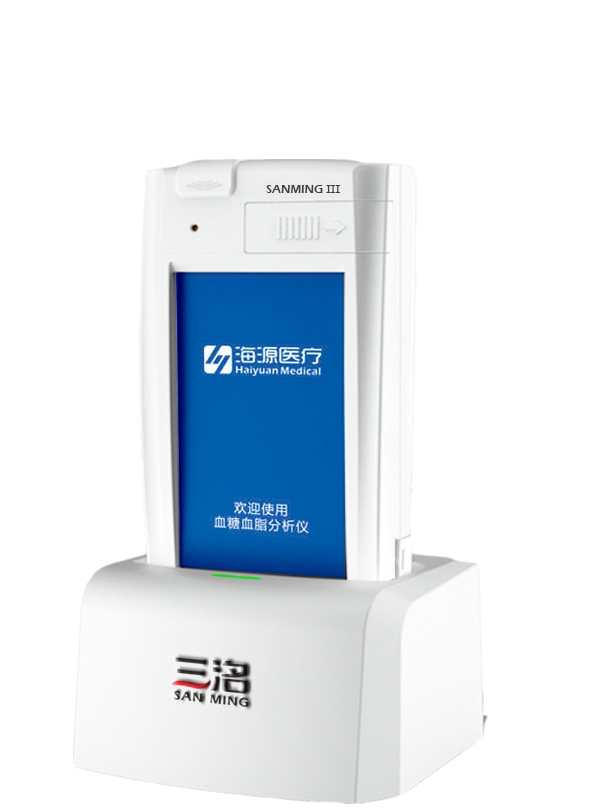

QR-201 Blood glucose and lipid Monitoring System employs two different forms of test methods: dry chemistry method & electrochemistry method

QR-201 provides a way for healthcare professionals to monitor lipids and glucose without the use of an outside laboratory or venipuncture

STRENGTHS

Large screen: 3 inch touch color screen, easy to operate
Fast and convenient: suitable for individuals, clinics and hospitals to quickly detect blood glucose and lipid
Fast result: accurate results can be shown in just 5 seconds
Data storage: blood glucose quality control data and detection data are stored separately
Gold test strips: with high precision and good repeatability
Long standby time: normally, it can be more than one month when fully charged

SPECIFICATIONS

	Feature	Description
1	Model Number	QR-201

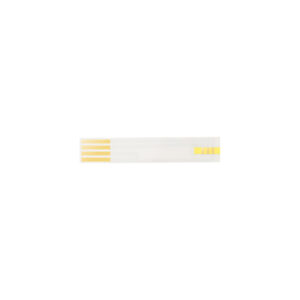

2	Test strips	QR-11 blood glucose test strip, QR-21 blood lipid test card
3	Test Time	GLU: 6 seconds, LIPID: 130 seconds
4	Measuring Range	GLU: 1.1mmol/l~33.3mmol/l Total Cholesterol: 2.59mmol/l~ 10.35mmol/l Triglycerides: 0.51mmol/L~ 5.65mmol/L HDL Cholesterol: 0.39mmol/L~ 2.59mmol/L
5	Sample	whole blood, capillary blood
6	Sample size	GLU: 0.8μL, LIPID: 40μL
7	Memory	1000 results
8	Coding	coding
9	Calibration	Automatically select test curve by the correcting code
10	Unit of measure	mmol/L, or mg/dL
11	Average calculation	7-, 14- & 28-day results averaging
13	Battery	～220V，50Hz，0.35A
14	Battery life	About 1000 tests
15	Automatic power off	Approx. 2 minutes after last user action
15	Dimension	135mm×60mm×25mm (L x W x H)
17	Weight	Handpiece: about 300g, charging base: 180g
18	Meter storage temperature	-20℃~ 55℃ 10 ~ 93% RH
19	Warranty	2 years
Operating Ranges
1	Temperature	5℃～40℃, room temperature
2	Relative humidity	10 ~ 80% RH
3	Hematocrit	35%–55%
4	Altitude	3000 meters

REFERENCES

Third Report of the National Cholesterol Education Program (NCEP) Expert Panel on Detection, Evaluation, and Treatment of High Blood Cholesterol in Adults (Adult Treatment Panel III) final report. Circulation. 2002;106:3143-3421.
CDC. 2014 National Diabetes Statistics Report. October 14, 2014. www.cdc.gov/diabetes/data/statistics/2014statisticsreport.html. Accessed July 20, 2014.
CDC, Division for Heart Disease and Stroke Prevention. Cholesterol fact sheet. www.cdc.gov/dhdsp/data_statistics/fact_sheets/fs_cholesterol.htm. Accessed July 20, 2014.
Mayo Clinic. High cholesterol. www.mayoclinic.org/diseases-conditions/high-blood-cholesterol/in-depth/triglycerides/art-20048186. Accessed June 10, 2014.
